ELECTROMAGNETIC FLOW METERS

The Flow Technology EL Series of electromagnetic flow meters represent the state-of-the-art for accurate measurement in water cycle and process applications. This new-generation meter incorporates improvements to the magnetic distribution elements that allow accurate operation throughout all flow regimes, allowing up to a 1000:1 turndown.

EL Series of mag meters from Flow Technology for water cycle and process applications.
Electromagnetic flowmeter EL 500 Series

EL 500 SERIES

Electromagnetic flow meter for small line sizes

The EL 500 Series electromagnetic flow meters allow accurate flow measurement in small lines sizes with very low flow rates. This mag meter series has five different sizes ranging between 1/8 inch to 3/4 inch. The flow tube is 316 stainless steel with NPT, ASIS 316 UNI 338 male threaded, tri-clamp / ISO 2852 or DIN 11851 connections. Connections and electrodes are supplied in 316L stainless steel as standard and are also available in Hastelloy C and Titanium on request.

QUICK SPECS

  • Designed for small line sizes and low flow rates
  • Accuracy: ± 0.2% of reading plus zero stability
  • Repeatability: ± 0.1%
  • Max Fluid Velocity: 10 m/s
  • Flow Range: 0.202 to 47 GPM
  • Housing Material: 304 stainless steel
  • Electrode Material: 316L SS (standard) / Hastelloy C22 / Titanium
  • Liner Material: PTFE
  • Min Conductivity: 5 µS/cm, 20 µS/cm for DI water
  • Rating: IP68 to a depth of 1.5 meters, optional to 4 meters

KEY BENEFITS

High accuracy
No moving parts
Sealed electrodes & coils
Bidirectional capability
The MC608B is a totally standalone battery-operated mag meter transmitter from Flow Technology of Tempe, AZ.

EL BATTERY POWERED SYSTEM

The non-intrusive element of the EL System allows product to flow through the meter without concern of clogging. This rugged electromagnetic flowmeter is designed specifically for conductive fluids, including slurries. This system combines the MC608 transmitter with Flow Technology’s EL Series of electromagnetic flowmeters that represent the state-of-the-art for accurate measurement in water cycle and process applications.

The MC608B is a totally standalone battery operated electromagnetic flowmeter transmitter that has up to 6 years battery life. Accuracy is maintained through the incorporation of automatic and continuous meter zeroing under flowing conditions.

QUICK SPECS

  • Ideally suited for agriculture industry: measure manure, water & waste
  • Uses the most versatile mag meter transmitter
  • Automatic and continuous meter zeroing under flowing conditions
  • Input Power: DC, AC or battery-powered
  • Display: Backlit LCD, Rate/Total & status flags
  • Pulse Output 1: Scaled total or linear rate
  • Pulse Output 2: Alarms
  • Analog Ouput: 4-20 mA output (requires 24 vdc power)
  • Serial Interface: MODBUS RTU interface on RS 485
  • Bidirectional flow capability
  • Instrument enclosure IP68 rated to a depth of 1.5 meters
  • Triple Password protection
  • Programming via laptop
  • Up to 6 year battery life

KEY BENEFITS

Sealed electrodes & coils
No moving parts
Integral grounding electrode
Bidirectional capability
Diagnostics – Empty pipe detection

METER SPECIFICATIONS

  • Max Fluid Velocity: 10 m/s
  • Flow Range: 1.38 to 18,779 GPM (5.22 to 71,086 LPM)
  • Line Sizes: 1 to 16 inches (up to 80″ available)
  • Accuracy: ± 0.20% plus zero stability
  • Repeatability: ± 0.1%
  • Housing Material: Acrylic painted carbon steel, optional stainless steel
  • Electrode Material: Hastelloy C22 / Platinum / Titanium / Tantalum
  • Liner Material: PTFE / Ebonite
  • Min Conductivity: 5uS/cm, 20 uS/cm for DI water
  • Rating: IP68 to a depth of 1.5 meters, optional to 10 meters
EL 1000 wafer electromagnetic flow meter

EL 1000 SERIES

Electromagnetic flowmeter for water cycle and process applications

The EL 1000 Series of electromagnetic sensors represent the state of the art for the accurate measurement for water cycle and process applications. This new generation sensor incorporates improvements to the signal protection as well as the magnetic distribution elements to create a unique electromagnetic field profile that ensures accuracy not only in turbulent flow, but also during the transitional and laminar flow regimes.

QUICK SPECS

  • Designed for water cycle and process applications
  • Accuracy: ± 0.5% of reading plus zero stability
  • Repeatability: ± 0.2%
  • Max Fluid Velocity: 10 m/s
  • Line Sizes: 1″ to 12″
  • Electrode Material: Hastelloy C
  • Liner Material: Ebonite or PTFE
  • Min Conductivity: 5 µS/cm, 20 µS/cm for DI water
  • Rating: IP68 to a depth of 1.5 meters with remote transmitter

KEY BENEFITS

No moving parts
High accuracy
Sealed electrodes & coils
Electromagnetic flowmeter EL1100 Series

EL 1100 SERIES

Wafer style electromagnetic flow meter for OEM applications

The EL 1100 series of electromagnetic flow meters represent the state of the art for the accurate measurement for original equipment manufacturer (OEM) process applications. This new generation flow meter utilizes an innovative structure to route the electromagnetic signal generated by the electrodes, providing a flow meter with an extremely wide measurement range. With no moving parts, the EL1100 provides a compact installation with wafer connections making it a solid choice for OEMs.

QUICK SPECS

  • Designed for industrial process applications
  • Accuracy: ± 0.20% of reading plus zero stability
  • Repeatability: ± 0.1%
  • Max Fluid Velocity: 10 m/s
  • Flow Range: 9.5 to 2,800 GPM (35.96 to 10,599 LPM)
  • Line Sizes: 1.5″ to 6″
  • Electrode Material: AISI 316L (std), Hastelloy C22, Titanium
  • Liner Material: PBT & 20% fiberglass
  • Min Conductivity: 5 µS/cm, 20 µS/cm for DI water
  • Rating: IP68 to a depth of 1.5 meters, optional to 10 meters

KEY BENEFITS

No moving parts
High accuracy
Sealed electrodes & coils

TECHNICAL DATA (DOWNLOADS)

EL 1222 SERIES

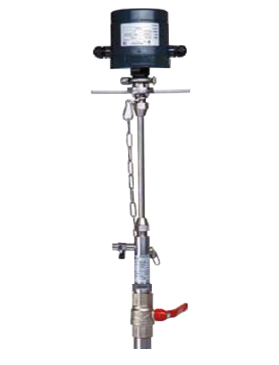

Insertion mag meter

The EL 1222 is a compact insertion electromagnetic flowmeter that can be used for temporary or permanent installations. Its compact size and bi-directional measurement capability delivers excellent accuracy for customers who do not want to or have space restrictions to install a full-bore meter.

QUICK SPECS

  • Suitable for line sizes 2″ to 104″
  • Wide rangeability in single unit
  • No pressure drop
  • Bidirectional capability
  • Remote & integral electronics
  • AC/DC & battery powered

KEY BENEFITS

High accuracy
No moving parts
Electromagnetic flowmeter EL 2200 Series for industrial process applications

EL 2200 SERIES

Industrial process applications

The EL2200 series of electromagnetic flowmeters represent the state of the art for the accurate measurement for water cycle and process applications. This new generation flowmeter utilizes an innovative structure to route the electromagnetic signal generated by the electrodes, providing a flowmeter with an extremely wide measurement range. The new EL Series meters are capable of a measurement range up to 1000:1.

QUICK SPECS

  • Designed for industrial process applications
  • Accuracy: ±0.2% of reading plus zero stability
  • Repeatability: ±0.1%
  • Max Fluid Velocity: 10 m/s
  • Flow Range: 1.38 to 18,779 GPM (5.22 to 71,086 LPM)
  • Line Sizes: 1 to 16 inches
  • Housing Material: Acrylic painted carbon steel, optional stainless steel
  • Electrode Material: Hastelloy C22 / Titanium
  • Liner Material: PTFE / Ebonite
  • Min Conductivity: 5 µS/cm, 20 µS/cm for DI water
  • Rating: IP68 to a depth of 1.5 meters, optional to 4 meters

KEY BENEFITS

Up to 1000:1 turndown
Sealed electrodes & coils
No moving parts
Bidirectional capability

EL 2400 SERIES

Sanitary applications

The EL 2400 Series flowmeters are designed for sanitary applications. They are manufactured from 304 stainless and are lined with PTFE. The standard electrode material is 316L SS with options for Hastelloy C and Titanium. End connctions on this series is typically Tri–Clamp, however they can also be supplied with DIN 11851 fittings. The flow meters are available in line sizes from 1″ to 4″ and are capable of operating over a temperature range of –40 to 284 deg F.

QUICK SPECS

  • Designed for sanitary applications
  • Accuracy: ± 0.20% of reading plus zero stability
  • Repeatability: ± 0.1%
  • Max Fluid Velocity: 10 m/s
  • Flow Range: 1.6 to 1320 GPM (6 to 4,997 LPM)
  • Line Sizes: 1 to 4 inch
  • Housing and Fitting Material: 304 stainless steel
  • Electrode Material: 316L / Hastelloy C22 / Titanium
  • Liner Material: PTFE
  • Min Conductivity: 5 µS/cm, 20 µS/cm for DI water
  • Rating: IP68 to a depth of 1.5 meters, optional to 4 meters

KEY BENEFITS

No moving parts
Sealed electrodes & coils
Bidirectional capability
Automotive electromagnetic flowmeter EL 4000 Series

EL 4000 SERIES

Automotive engine coolant mag meter

The custom designed state of the art EL 4000 electromagnetic flow meter is specifically for the measurement of engine coolant flow, including on board measurement. The small footprint, lightweight device is ideal for automotive applications where accuracy, no moving parts and low (zero) pressure drop are essential requirements in this demanding environment.

QUICK SPECS

  • Designed for coolant flow applications
  • Accuracy: ± 0.5% of reading plus zero stability
  • Zero Stability: ± 0.1% full scale
  • Repeatability: ± 0.2%
  • Max Fluid Velocity: 5 m/s
  • Flow Range: 0.5 to 241 GPM (1.9 to 912 LPM)
  • Line Sizes: 1/2″, 5/8″, 3/4″, 1″, 1-1/4″, 1-1/2″ and 2″
  • Temperature Range: -14° to 248° F (-10° to 120° C) with remote electronics
  • Tube Material: Galvanized carbon steel
  • Electrode Material: 316 SS
  • Liner Material: PBT and 20% Fiberglass
  • Min Conductivity: 5 μS/cm, 20 μS/cm with DI water
  • Rating: IP 66 (NEMA 4X)
  • Lemo Connectors

KEY BENEFITS

Viscosity independent
Lightweight flow tube
12 VDC powered for on-board mounting

COMPATIBLE FLOW METER ELECTRONICS
